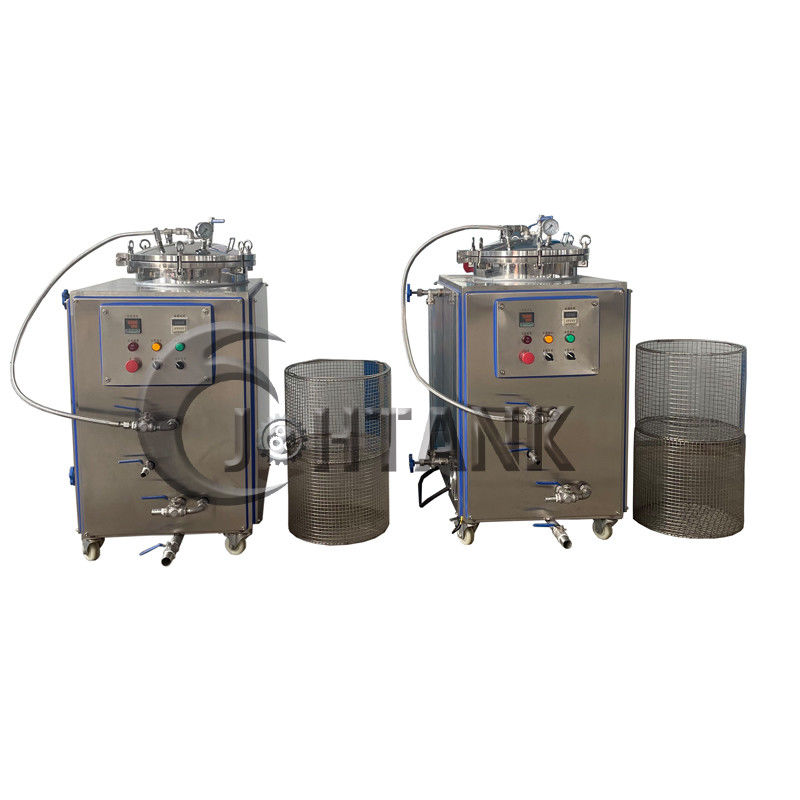

Food Portable Vertical High Pressure Steam Sterilizer 150L

Factory Food Sterilization Portable Vertical High Pressure Steam Sterilizer Autoclave Good Price 75L 100L 150L

Vertical sterilizer is a device that uses steam to sterilize containers and packages in a vertical closed metal pot or kettle. It is mainly composed of a pot body, a head, a sterilization basket, a steam system, a cooling water system, a gas (water) drain device, and a temperature and pressure monitoring system. According to the steam supply method, it is divided into bottom blowing type and upper blowing type; according to the cooling method, it is divided into atmospheric pressure water cooling type, air pressure cooling type, steam pressure water cooling type, etc. When the vertical sterilization pot is sterilized, it is usually divided into the process of product filling, exhaust, heating, sterilization, cooling and unloading, etc.

The main body of the sterilization pot is composed of a pot body, a pot cover, an electric heating pipe, a water pump, a pipe, a frame body, etc. The lid is sealed with solid silica gel high temperature resistant sealing ring, which is reliable in sealing and long in practical life. This equipment has the characteristics of fast heating, uniform heating, easy temperature control, and simple operation.

Parameter
