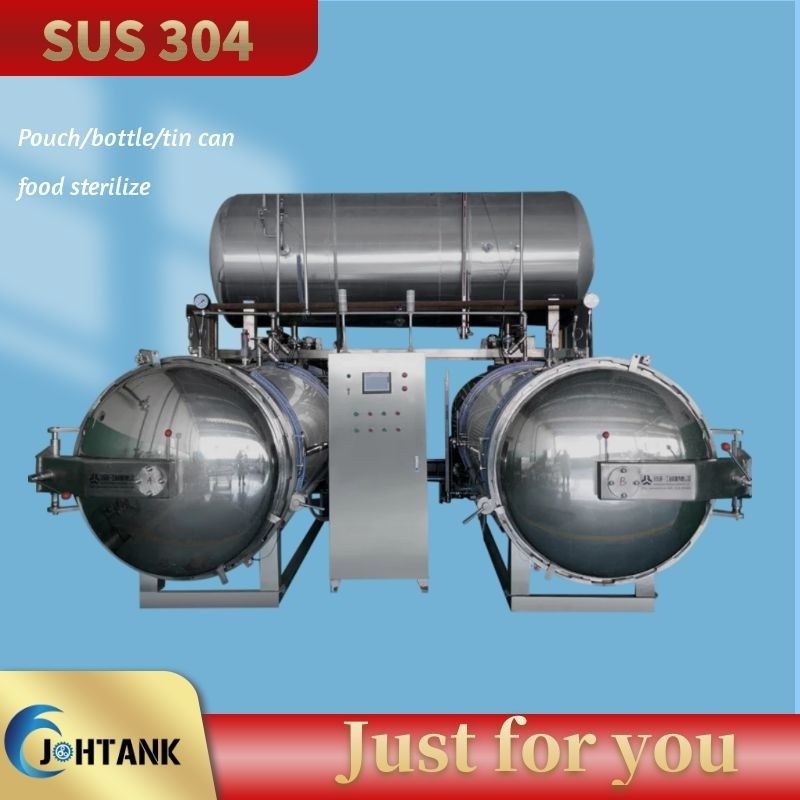

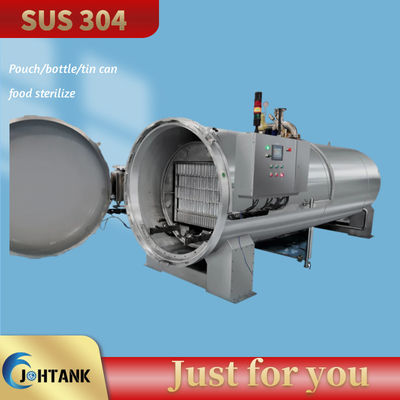

Canned Baby Food Small Retort Machine Canning Sterilizer

Large Image : Canned Baby Food Small Retort Machine Canning Sterilizer

Product Details: Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	USD 11500 PER SET
Packaging Details:	film cover and then loaded to the container
Delivery Time:	20-25 WORKING DAYS
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	11 SETS PER MONTH

Contact Now

Canned Baby Food Small Retort Machine Canning Sterilizer

Description

Product Name:	Small Canned Baby Food Retort Pouch Sterilization Machine	Key Selling Point:	Energy Saving
Keywords:	Food Sterilizer Machine	Application:	Food Product Sterilization
Sterilizing Way:	Water Immersion	Advantage:	Low Consumption
Machine Test:	Provided	Warranty:	1 Year
Material:	SUS304	Function:	High Temperature High Pressure Sterilization
High Light:	Canned small retort machine , SUS304 small retort machine , canning sterilizer machine

Small Canned Baby Food Retort Pouch Sterilization Machine

retortas sterilizer machine Scope of application

For all heat resistant and waterproof package material1. Glass container: Glass bottle, glass jar
2. Mental can: tin can.tin canned, aluminum can
3. Plastic container serial: PP bottles
4. Flexible pouch serial: flexible retort pouch laminated film bag, high temperature cooking bag, vacuum bag

						Ltem Unit

						1000#

						1200#

						1300#

						Kettle Length(mm)

						2400

						2400

						3200

						3600

						4000

						3600

						4500

						Total Length(mm)

						3900

						4400

						5200

						5600

						6000

						5800

						6700

						Total Width(mm)

						1400

						1600

						1600

						1600

						1600

						1800

						1800

						Total Height(mm)

						3200

						3500

						3500

						3500

						3500

						3800

						3800

						Total Capacity m3

						2.2

						3.2

						4

						4.6

						4.9

						5.3

						6.5

						Food Basket (unit)

						3

						3

						4

						4

						5

						4

						5

						Gas Consumption KG/batach

						115

						180

						230

						255

						280

						300

						370

						Total Efficiency (KW)

						8

						14

						14

						14

						14

						21.5

						21.5

						Energy Cost KW/h

						5

						8

						8

						8

						8

						8

						8

						Designed Temperature (C)

						145

						Test Pressure

						0.44Mpa

						Designed Pressure

						0.35Mpa

retortas sterilizer machine Application Principle1. atomized germicidal water can expand heat exchange area and realize high efficiency heat exchange mode

2. steam and atomized sterilizing water are directly exchanged in sterilizing kettle. Steam heat 100% use, zero energy loss,maximum energy efficiency

3. a small amount of sterilizing water circulation quickly, the water temperature is uniform and rapid heating up to the set

working temperature

4. nozzles are sprayed from different angles to create a high heat flow in the sterilizer, thus evenly distributing the

temperature in the pot

5. the sterilization effect (F value) is set in advance to control the whole sterilization process, so that the sterilization

effect becomes intuitive, controllable, and ensures that the sterilization effect of each sterilization batch is consistent, and

is no longer affected by the heating rate and product volume. It is of great practical significance for canned food processing

enterprises to realize the standardized production of "commercial aseptic" food

retortas sterilizer machine Advantage1. No exhaust, low noise, 18% steam energy saving (compared with water immersion and steam sterilizer).
2. Direct heating and cooling without heat exchanger to improve heating and cooling speed.
3. Adjust the sterilization temperature arbitrarily and calculate the sterilization temperature automatically.
4. The kettle is equipped with four movable temperature probes, which can monitor the F value of the food center and observe the heat distribution in the kettle at any time.
