Product Details:
|
| Product Name: | Broiler Wing Chicken Cutlet Steak Fried Shrimp Balls Continuous Frying Machine | Function: | Fried Meat/Snacks |
|---|---|---|---|
| Processing Types: | Full/ Semi Automatic | Advantage: | Simplicity Of Operator |
| Package: | Container/ Wooden Package | Heating Method: | Electric/ Gas/ Diesel And So On |
| Warranty: | 1 Year | Temperature Range: | 80-300℃ |
| After-Sales Service: | Video Technical Support/ Online Support | Feature: | Steady Performance |
| Highlight: | Snacks Continuous Frying Machine,Meat Continuous Frying Machine,continuous frying system machine |
||

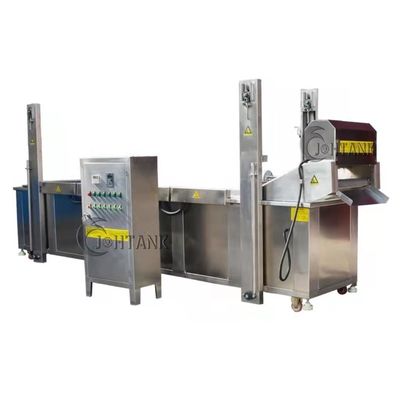

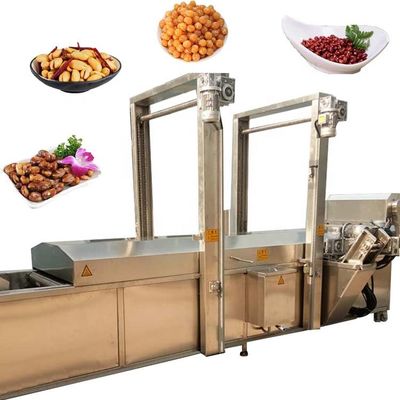

Broiler Wing Chicken Cutlet Steak Fried Shrimp Balls Continuous Frying Machine
Broiler Wing Chicken Cutlet Steak Fried Shrimp Balls Continuous Frying Machine Products Advantage:
1. Optional heating method: electricity, gas, steam, electromagnetism, etc.
2. Frying time can be set, automatic temperature control 0-300°C.
3. Double mesh belt and the conveyor speed is adjustable.
4. Can be equipped with oil filter machine and oil tank.
5. Equipped with mesh lifting system, easy to clean.
6. With oil storage tank and oil pump.
7. Fire-extinguishing device is optional.
8. Oil refined filtration device is optional.
Broiler Wing Chicken Cutlet Steak Fried Shrimp Balls Continuous Frying Machine Relevant Data:
| 1 | Frying Product | Snacks/ Nuggets Burger/ Fish/ Peanuts And So On |
| 2 | Heating Pethod | Electricity/ Gas/ LPG/ Diesel/ Wood |
| 3 | Rated Power | Different Based On Model And Products |
| 4 | Frying Temperature | 155-180℃ |
| 5 | Frying Temperature Range | 80-300℃ |
| 6 | Temperature Precision | ± 1℃ |
| 7 | Frying Time | 1-5Mintues Adjustable |
| 8 | Frying Time Control Range | Frequency Adjustable |
| 9 | Mesh Bbelt Width | 300mm/ 400mm/ 600mm/ 800mm/ 1000mm/ 1200mm |
Broiler Wing Chicken Cutlet Steak Fried Shrimp Balls Continuous Frying Machine Introduce:
CONTINUOUS FRYER:
Automatic continuously working; Pot body made of 4mm 304 stainless steel,baseboard is 5mm thickness.Pot body shell made of 1mm 304 stainless steel.Water leakage test to make sure the leakproofness after welding.Aluminum silicate insulation materials is flled between pot body and shell.
HOISTING SYSTEM:
Can hoist the fume exhaust cover individually.Can hoist the cover, belt holder and heating tubes together Convenient to clean the mesh belt and fume exhaust cover.Use the safety bumper to make sure the belt holder can not fall down when it lifted.Automatically cut off heating tubes' power when hoisting the cover.
AUTOMATIC CONTROL BOX:
Oil temperature is tested by sensor and transfer to controller.The oil temperature and frying time can be set by the control system all electrical part is famous brand such as Siemens, Schneider PLC touch screen system which can control the frying time, temperature , speed and so on.
MESH BELT CONVEYING SYSTEM:
Belt speed is frequency controlled.Different belt based on request .The exhaust cover and belt holder can be lifted individually, easy cleaning.The bearing and seat is made of stainless steel 304.The gap of double belt is 30 – 80 mm.Transmission use gear reducer with low noise.
LAMPBL ACK EXHAUSTING SYSTEM:
Exhaust cover is made of 2 mm stainless steel 304.The cover and exhaust pipes have vapour extraction system.Two fume Exhaust pipes ,each is 6m long,made of 304 stainless steel.Axial flow fan installed on the end of each exhaust.Control valve installed on the bottom of exhaust seat.
OIL TANK:
Oil tank is used to store the oil after working for cleaning the frying machine. It can pump oil back to the oil tank from fryer. It also can automatic fill the oil to fryer during frying.Model: YG 2ton.Volume of oil: 2000kg.Material: SUS304 stainless steel with heating system.
Broiler Wing Chicken Cutlet Steak Fried Shrimp Balls Continuous Frying Machine Application:
Broiler Wing Chicken Cutlet Steak Fried Shrimp Balls Continuous Frying Machine Services:
Support Video technical,support Spare parts and Online support service.The core components are guaranteed for 1 year ,support sample service customization service.We always uphold the "quality of survival, quality of development" business philosophy, the company's machinery, its quality and service have been the consistent praise of customers in different regions, and many customers to achieve friendly cooperation.
