Product Details:
Payment & Shipping Terms:
|
| Product Name: | Industrial Food Retort Sterilization Autoclave /Retort Machine For Glass Jars Tin Can Sterilization Retort Sterilizer | Usage: | Glass Jars Tin Can |
|---|---|---|---|
| Voltage: | Customized | Certification: | ISO CE ASME |
| Function: | High Temperature High Pressure Sterilizing | After Sale Service: | Engineers Available To Service Machinery Overseas |
| Material: | SUS30408 Or SUS316L | Heating Way: | Boiler Steam |
| Sterilizing Way: | How Water Spray | ||
| Highlight: | SUS316L food retort machine,Glass Jar food retort machine,retort bottle machine |
||

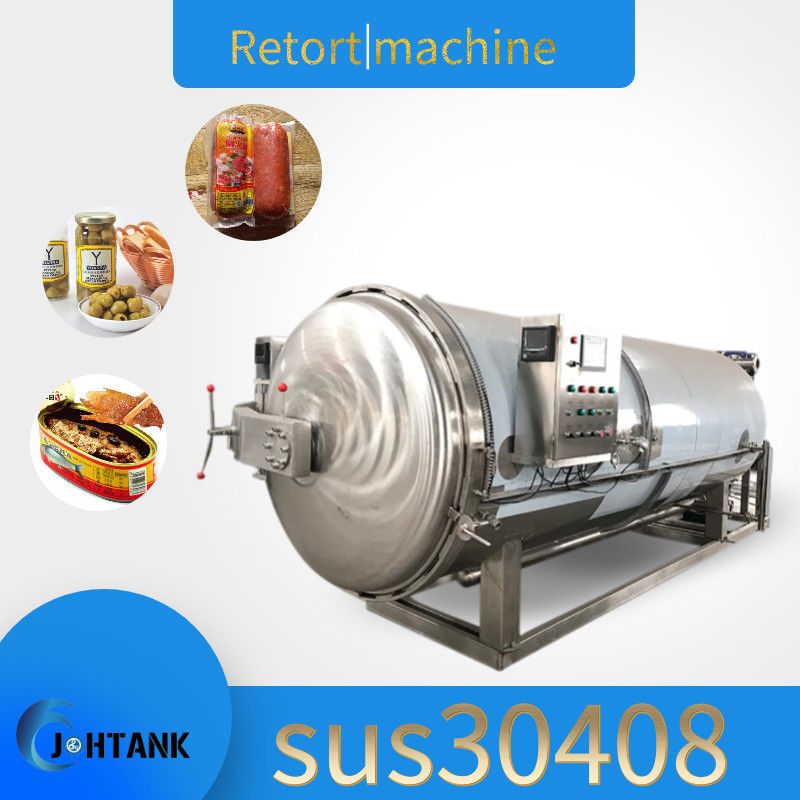

Industrial Food Retort Sterilization Autoclave /Retort Machine for Glass Jars Tin Can Sterilization Retort Sterilizer
1. Uniform temperature distribution
2. High temperature and pressure short time sterilization
3. Higher temperature sterilization, save energy
4. Flexibility: Our factory could manufacture every kind of no-regular product according to different customer’s requirements.
Retort Model Parameter for your reference
|
Model
|
900
|
1000
|
1200
|
1400
|
||
|
Kettle length(mm)
|
1800
|
2200
|
2400
|
2700
|
3600
|
4000
|
|
Capacity(m³)
|
1.35
|
2.06
|
2.16
|
3.7
|
4.6
|
6.89
|
|
Power
|
1.5
|
3
|
3
|
5.5
|
5.5
|
11
|
|
Pressure(Mpa)
|
0.35
|
0.35
|
0.35
|
0.35
|
0.35
|
0.35
|
|
Temperature(℃)
|
147
|
147
|
147
|
147
|
147
|
147
|

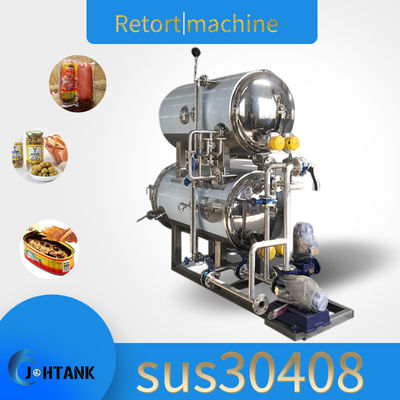

The two layer water immerse retort for tin can food has top and bottom two pots, the top one is used to save hot water, and the bottom one is used for sterilizing, The pre-heated hot sterilization water will flow into the bottom sterilization pot from the top pot after the packaged food be put into the bottom pot, then the packaged food will be immersed, and the hot water will be circulated in the bottom pot, thus we can achieve a thoroughly sterilization.
The two layer water immerse retort for tin can food can be applied to a variety of high temperature packaging materials,such as :
1. plastic & rubber container: PP bottle, HDPE bottle, PP can, HDPE can
2. flexible package: aluminum foil bag, transparent bag, vacuum bag, retort pouch
3. Glass container : Glass bottle , glass jar
4. Metal can: tin can . aluminum foil can
1. How to heat up the autoclave?
2. How to decide the size of autoclave we need?
3. What is the control type of the autoclave?
