Product Details:
Payment & Shipping Terms:
|
| Material: | Food Grade SUS30408 | Sterilization Way: | Steam Water And Spray |
|---|---|---|---|
| Product Name: | Retort Canning Sterilizer | Construction: | Double Layer And Single Layer |
| Control System: | Full Automatic Or Semi Automatic | Condition: | New |
| Design Temperature: | 147C | Design Pressure: | 0.35MPa |
| High Light: | Milk Food Sterilizer Machine,0.35MPa Food Sterilizer Machine,retort food processing machinery |
||

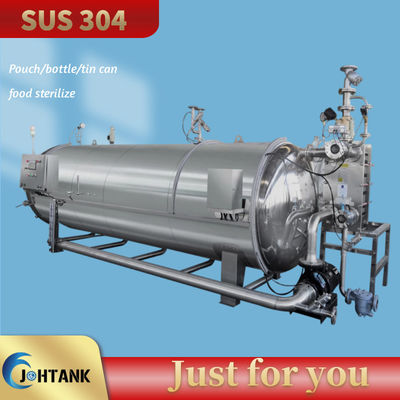

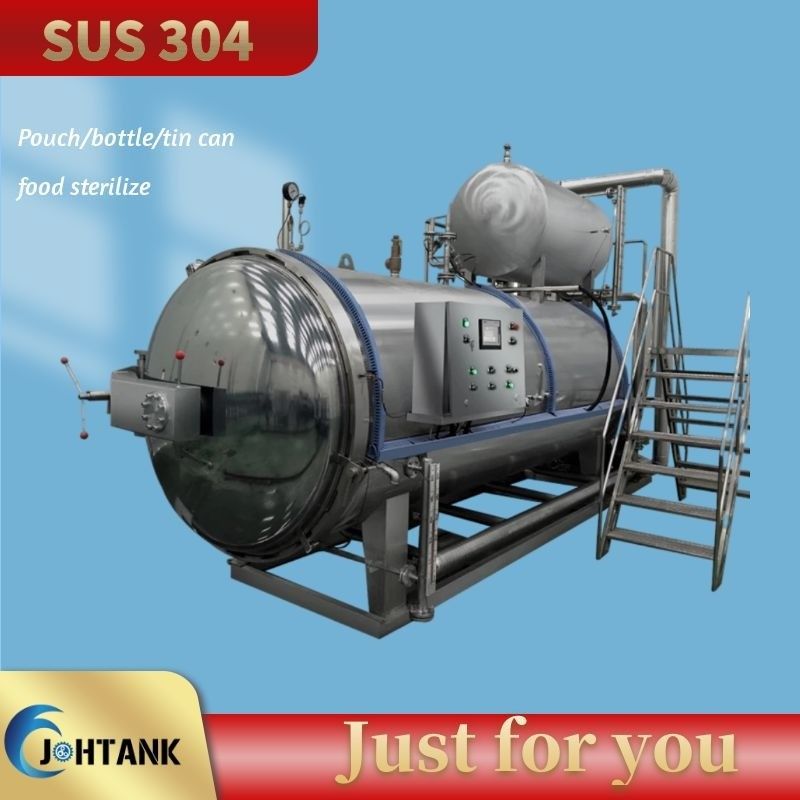

Industrial Retort Milk Canning Sterilizer Sterilizing Autoclave Machine for Bottle Food Sterilization
Retort model for your choice
| Specifications | JHTC-10 | JHTC-12 | JHTC-13 | ||
| 2200 | 3000 | 600 | 3600 | 4000 | |
| Inner diameter(mm) | 1000 | 1200 | 1200 | 1300 | 1300 |
| Cylinder Length(mm) | 2200 | 3000 | 3600 | 3600 | 4000 |
| Total length(mm) | 3800 | 4800 | 5400 | 5400 | 5800 |
| Total width(mm) | 1200 | 1400 | 1400 | 1500 | 1500 |
| Total highness(mm) | 3000 | 3400 | 3400 | 3800 | 3800 |
| Net capacity (m3) | 1.78 | 4.25 | 4.82 | 5.70 | 6.20 |
| Weight(unload)(t) | 3.2 | 4.0 | 4.5 | 4.9 | 5.3 |
Principle for milk sterilizing autoclave
1. simply,milk sterilizing autoclave is a sealed high pressure container for killing bacterial in the food .
2. because the bacterials in the packaged food will be killed under the 121℃ and not to reproduce forever,because of this,our machine temperature is designed to 0-135 ℃ adjustable to killed all sorts of the bacterials, and the packaged food will be preserved for 6 monthes at the room temperature without any antiseptic
water spray retort sterilizer is famous for its outstanding and consistent temperature distribution.The retort can achieves consistent product quality,food safety and extended shelf life.
Water spray retort is equipped with water spray device, heat exchanger,powerful circulation pump.
Heating and holding phase :the powerful pump cycles the process water through retort and heat exchanger,the water is sprayed on the product surface,shorten cycle time .save energy and makes heat distribution more uniform,all the products inside the retort get the same thermal treatment.
Cooling phase :the powerful pump cycles process water through retort and heat exchanger, all the products inside the retort are cooled same,regardless of their location.
Indirect heating and cooling ,can effectively avoid big temperature difference,process water for cooling phase, is sterilized during heating and holding phase,then it can effectively avoid the secondary pollution.Help our customers to produce high quality products with better flavor and appearance
Fully functional for a variety of high-temperature autoclave sterilization packaging materials:
1, the plastic container: PP bottles, HDPE bottles.
2, soft bag Packing: foil bag, transparent bag, vacuum bag, high temperature cooking bags.
3, tin cans: steel and glass products.
Retort sterilizer details
Our retort sterilizer's Warranty
Quality guarantee term is for one year,Malfunctions which are caused by machine-self and quality will be responsible for our manufacturer. Other malfunctions which are caused by operation mistakes, man-made problems, etc will be responsible for clients-self.
