Product Details:
|
| Material: | SUS 304 With 3mm And 4mm | Application: | Potato Chips &french Fries |
|---|---|---|---|
| Product Name: | 500kg/H Potato Chips Making Machine Automatic Snak Food Manufacturing Potato Chips Production Line | Power: | Gas, Electric & Diesel |
| Raw Material: | Fresh Potatos | Out Put Capacity: | 500kg/H |
| Uasge: | Snack Food | ||
| High Light: | 500kg/H Potato Chips Production Line,Full Automatic Potato Chips Production Line,SUS 304 Potato Chips Production Line |
||
Potato Chips Producion Line Descriptions
Potato Chips Production Line is designed for making the potato chips .
Raw materials can be fresh potato,banana etc.

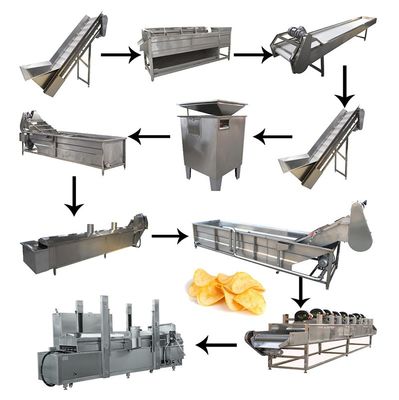

It includes the 9 steps :1.washing and peeling 2.slicing 3.washing 4.blanching 5.de-watering 6.frying 7.deoil 8.seasoning 9.packing
We will provide automatic potato chips production line project formula and technology guidence free of charge to make sure customers can make high quality and delicious potato chips.

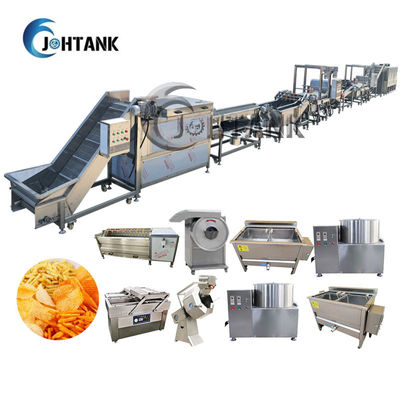

Equipmen list
| Item | Dimension (customized) | Fuction |
| 1. Convyor hoist machine | 2500x800x1200 mm | Selection of raw materials |
| 2. Potato washing & peeling machine | 3400x850x1750 mm | Wash and peel potatoes |
| 3. Piking line | 3000x800x850 mm | Pick qualified potato |
| 4. Potato Chips cutting machine | 680x450x900 mm | Cut potato into slices or strips |
| 5. Bubble washing machine | 3500X1080X900 mm | Wash potato slices or strips |
| 6. Blanching machine | 5000x1400x850 mm | Blanch potato slices or strips |
| 7. Air-dry dewatering machine | 5000x1180x1450 mm | Further remove the water from the surface of potato slices or strips to save energy |
| 8. Continuous frying machine | 8000x1800x2000 mm | Fry potato slices or strips into chips |
| 9. Vibrating de-oil Machine | 1500x1000x780 mm | Remove the oil from the surface of chips for healthy |
| 10. Air-dry deoiling machine | 5000x1180x1450 mm | Further remove the oil from the surface of chips |
| 11. Conveyor Machine | 3000x800x850 mm | Convey to next operation |
| 12. Seasoning machine | 1100*800*1300 mm | Sprinkle the potato chips with seasoning |
| 13. Automatic Packing Machine | 3400*1000*1800 mm | Pack the chips to custome |
Potato Chips Production Line Characters
1. Fully automatic control, can save a lot of labor costs;
2. All machines are made of SUS 304, easy to clean. Meet the hygienic requirements of food production
3. All electrical parts are world famous brands.
4. Reasonable design and can be placed flexibly.
5. Easy to move, almost all wheeled equipment can be moved to any place.
6. Can be customized small potato chips making machine according to customer requirements.
Equipment Details
