Product Details:
|
| Product Name: | Automatic Chips Making Machine | Output Capacity: | 100 Kgs/hour |
|---|---|---|---|
| Mode: | Full Automatic | Material: | SUS 304 |
| Power: | Gas, Electric & Diesel | Type: | Potato Chips Production Line |
| Raw Material: | Fresh Potatoes | Usage: | Snacks Food |
| High Light: | SUS304 Automatic Chips Making Machine,100 Kgs Automatic Chips Making Machine,SUS304 potato chips processing line |
||

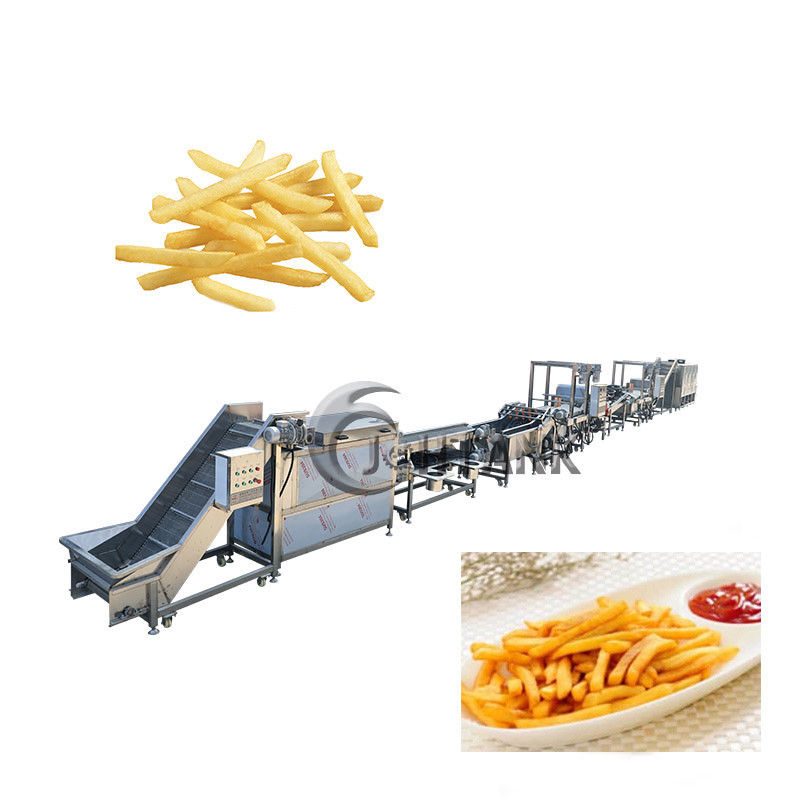

SUS304 Fresh Automatic Chips Making Machine Processing Line 100 Kgs / Hour
Automatic Chips Making Machine is mainly for small processing, the materials used are high-quality stainlesssteel, simple operation , safety, hygiene, is the first choice of small processing enterprises equipment.
Parameters of the 100kgs/H Potato Chips Production Line
| Item | Dimension (customized) | Fuction |
| Fresh potato elevator | 2500x800x1200 mm | Selection of raw materials |
| Potato washing & peeling machine | 3400x850x1750 mm | Wash and peel potatoes |
| Unqualified potatoes picking line | 3000x800x850 mm | Pick qualified potato |
| Potato Chips cutting machine | 680x450x900 mm | Cut potato into slices or strips |
| Bubble washing machine | 3500X1080X900 mm | Wash potato slices or strips |
| Blanching machine | 5000x1400x850 mm | Blanch potato slices or strips |
| Air-dry dewatering machine | 5000x1180x1450 mm | Further remove the water from the surface of potato slices or strips to save energy |
| Continuous frying machine | 8000x1800x2000 mm | Fry potato slices or strips into chips |
| Vibrating de-oil Machine | 1500x1000x780 mm | Remove the oil from the surface of chips for healthy |
| Air-dry deoiling machine | 5000x1180x1450 mm | Further remove the oil from the surface of chips |
| Conveyor Machine | 3000x800x850 mm | Convey to next operation |
| Seasoning machine | 1100*800*1300 mm | Sprinkle the potato chips with seasoning |
| Automatic Packing Machine | 3400*1000*1800 mm |
Pack the chips to customer |
Technological Process of Potato Chips Production Line
Elevator ⇒ Washing and Peeling Machine ⇒ Picking Line ⇒ Cutting Machine ⇒ Bubble
washing machine ⇒ Blanching Machine ⇒ Air-Drying dewatering machine ⇒ Frying Machine
⇒ Vibrating De-oil Machine ⇒ Air-dring De-oil Machine ⇒ Conveyor ⇒ Seasoning Machine
⇒ Automatic Packing Machine.
