SUS304 Material Tomato Paste Processing Line 20 - 1000 Tons/Day

Tomato Paste Sauce Coocker Production Machinery Processing Line Making Machine

Tomato Paste Sauce Coocker Production Machinery Processing Line Making Machine​ Tomato Sauce Making Recipe:

The raw materials that can be processed by the tomato processing line include fresh tomatoes and tomato paste, and the finished products include: tomato sauce,tomato juice,tomato sauce and tomato drink,tomato powder.

Tomato Paste Sauce Coocker Production Machinery Processing Line Making Machine Production Design:

All equipment of the tomato processing production line adopts PLC to control the start and stop linkage, which can save you labor costs and improve production efficiency.The main equipment of the tomato processing production line is all made of SUS304/316 material to ensure the safety and health of the finished product.

1. The evaporator in the tomato processing line adopts a secondary steam condensation recovery system, which greatly reduces steam consumption.Low-temperature evaporation process can effectively improve product quality. In the low temperature state, the flavor and nutrients of tomato are retained to the maximum extent. For the cooling water of the evaporator, the outer water tank is recirculated to reduce the waste of cooling water.

2. Tomato lift generally using chain plate hoist, little harm to tomatoes. The elevator is equipped with a sprayer so that the tomatoes can be rewashed during lifting.
3. The bubble cleaner/float cleaner cleans tomatoes with floating water from the bubble generator at the bottom of the machine. You can wash the tomatoes thoroughly, soaking them won't hurt.

4. The crosscutting blades are designed to help protect the vitamins in tomatoes by generating heat from the waste as they work. This process helps the pectin inside the tomato, giving the tomato sauce its natural consistency. Room temperature feeding, 60-90℃ discharging, temperature adjustable.

5. Speed up to 1470r/min, centrifugal force, high juice rate. Forced circulation evaporator: vacuum low temperature continuous concentration process, retain tomato nutrients and taste.

6. Tube sterilizer includes heating, sterilization and cooking section, mainly composed of tube and feed pump in tube heat exchanger. Aseptic bag filling machine is mainly composed of aseptic filling head (single/double), operating system, computer control system, weighing instrument, operating table, platform and so on.

Tomato Paste Sauce Coocker Production Machinery Processing Line Making Machine Parameter:

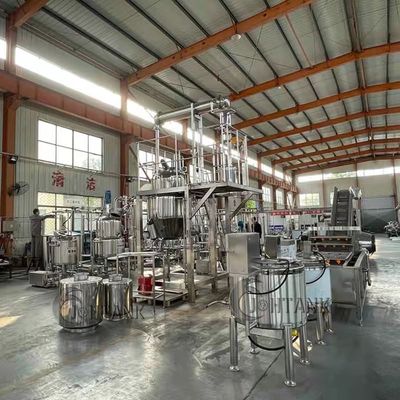

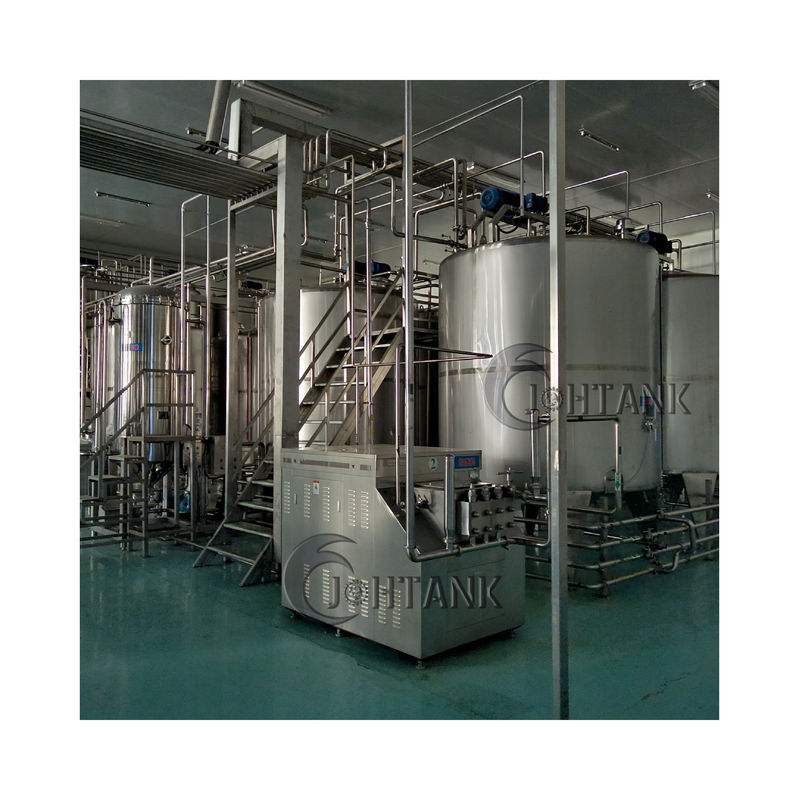

Tomato Paste Sauce Coocker Production Machinery Processing Line Making Machine Real PICS:

Services:
Support Video technical,support Spare parts and Online support service.The core components are guaranteed for 1 year ,support sample service customization service.
We always uphold the "quality of survival, quality of development" business philosophy, the company's machinery, its quality and service have been the consistent praise of customers in different regions, and many customers to achieve friendly cooperation.
Why choose us?
Our service team is full of youthful vitality, can quickly and accurately recommend the most suitable products to you, truly effective and quick response. Each employee has a high professional quality, can provide you with the most intimate consulting services. Our after-sales team can solve the follow-up problems for you, can provide online technical guidance, so that you buy after the protection. Our company has its own factory, which can ensure the capacity of the equipment and deliver the goods on time within the delivery period. The packaging is complete and meets the requirements. In addition to potato chip machines, we also produce vacuum fryers, garlic peelers, vacuum packing machines and other food machines,welcome for inquiry.
