Product Details:
|
| Product Name: | Tomato Paste Sauce Production Line | Function: | The Production Of Jam |
|---|---|---|---|
| Production Capacity: | 20 -1000 Tons/Day | Material: | SUS304/316 |
| Application Scope: | Fruit And Vegetable Processing Industries | Raw Material: | Fresh Tomato |
| Warranty: | 1 Year | Equipment Operation: | PLC Control Linkage Start And Stop |
| Power: | 1.5kw | Advantage: | Low Consumption High Efficiency |
| High Light: | Ketchup Processing Making Machine,SUS304 Sauce Production Line,1470r/min Sauce Production Line |
||
Ketchup Processing Making Machine Tomato Paste Sauce Production Line
Ketchup Processing Making Machine Tomato Paste Sauce Production Line Composition:
Including fruit lifting system, cleaning system, sorting system, crushing system, preheating enzyme removal system, beating system, vacuum concentration system, sterilization system, aseptic bag filling system.
Ketchup Processing Making Machine Tomato Paste Sauce Production Line Superiority:
1. The loss of red pigment and other nutrients in the product is smaller than that of similar equipment at home and abroad due to the effect of the breaker and low-temperature concentration (the one-effect evaporation temperature is less than 70℃) and the short residence time of double-effect materials in the evaporator.
2. Evaporator has condensate water secondary steam recovery system, so it can reduce the steam consumption.
3. The internal material mixing device structure of the sterilizer is different, shorter cleaning time than other equipment, clean without scaling. At present, any similar equipment at home and abroad has the phenomenon of material layer scaling, which affects the heat transfer effect and product quality.
4. Filling machine in the process of filling using rotary lifting way, to avoid secondary pollution of products. Double channel beater are conical screen structure and gap with adjustable load, two channel beater frequency conversion speed regulation, make juice more fully. The evaporator is a double-effect combined structure, which conforms to the parabolic law of tomato harvesting. There will not be a small number of raw materials when the phenomenon of big horse car, save energy.
Ketchup Processing Making Machine Tomato Paste Sauce Production Line Parameter:
| Washing Machine | Parallel Roller Cleaning Machine | Broken Screw Pump |
| Mesh belt width: 800mm | Length:3m | Capacity: 0.5-1ton/hour |
| Power: 6.6kw/380v/50hz | Power: 5.2kw | Power: 1.5kw |
| Dimension: 3500*1200*1300mm | Dimension: 3000*1000*1400mm | Dimension: 1500*500*500mm |
| Capacity | 150-1500T/Day |
| Product Concentration | 28-30%/30-32% /36-38% |
| Control Mode | Under 300 tons, manual control or automatic control can be adopted |
| Material | SUS304/316 |
| Maximum Speed | 1470r/min |
| Sterilization Method | GFM-TTS |

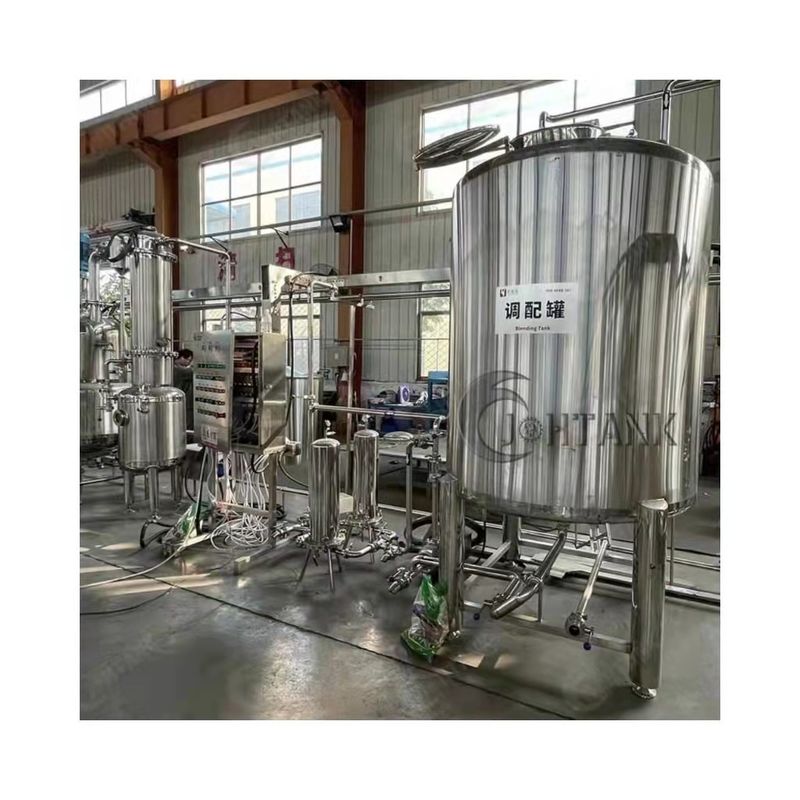

Ketchup Processing Making Machine Tomato Paste Sauce Production Line Real PICS:
