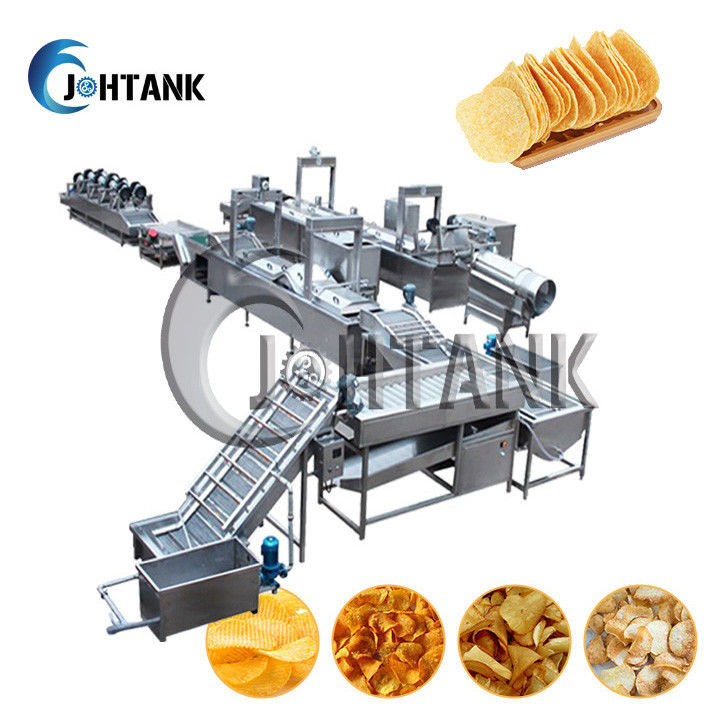

304 Stainless Steel Fresh Potato Chips Production Line

304 Stainless Steel Automatic Fresh Chip Making Machine Production Manufacturers

304 Stainless Steel Automatic Fresh Chip Making Machine Production Manufacturers Equipment Parameters:

JOHTANK (SHANDONG) FOOD MACHINERY CO.,LTD is located in zhucheng city, SHANDONG province, which is also known as the land of dinosaurs.The company has 15000 square meters of factory buildings and 100 employees.Our company’s main products include Frying machine,photo chips and frozen french fries processing equipment,fruit & vegetable washing machine,large-scale hot air drying machine and packaging machine.With 10 years of export experience, our products are exported to America, Europe, Africa, Southeast Asia and other countries and regions.With excellent technology, sophisticated processing and testing equipment, reliable manufacturing quality, strict quality assurance system and more perfect after-sales service, has won more and more customers.

304 Stainless Steel Automatic Fresh Chip Making Machine Production Manufacturers Introduction To Some Equipment:

Production process of potato chip machine

1. Conveyor hoist machine → 2. Cleaning and peeling machine → 3. Picking machine → 4. Cutting machine → 5. Water bucket elevator → 6. Washing machine → 7. Blanching machine → 8. Vibrating machine to de-water → 9. Electric dryer → 10. Continuous frying machine → 11. Vibrating de-oil machine → 12. Electric dryer
⇓
• POTATO CHIPS → 13. Seasoning machine → 14. Packing machine
• FRENCH FRIES → 13. Fluidized belt → 14. Packing machine

Washing flow machine:

1. Washing time is 30-60s;

2. Washing process is for washing off the potato starch on the potato chips which can keep it from fall in the oil and keep long-use life for the frying machine;

Electric dryer:
1. With big air volume centrifugal turbofan, and small sharp air outlet, enable quick drying;
2. With SUS 304 mesh belt, mesh belt width could be 500-1000mm;
3. Mesh speed adjustable by gearbox;
4. With turnover type or flat type mesh belt, suitable for different products drying;
5. Each unit of blowing fan can be controlled separately;
6. Suitable for production line, continuously working;

Continuous frying machine:
1. Optional heating method: electricity, gas, steam, electromagnetism, etc;

2. Frying time can be set, automatic temperature control 0-300°C;
3. Double mesh belt and the conveyor speed is adjustable;
4. Can be equipped with oil filter machine and oil tank;
5. Equipped with mesh lifting system, easy to clean,fire-extinguishing device is optional;
6. With oil storage tank and oil pump;

Vibrating de-oil machine
1. lt is used to remove some oil by vibrating;
2. It is equipped with oil collection board and oil collection box;
3. Overcome the potato chip oil rate is high, greasy mouth defects. It enhances the flavor of the chips;
4. Put the fried chips into the De - oiling machine, then the chips will be ok for one minutes.

Packing machine:
1. Full-automatic Weigh-Form-Fill-Seal type, efficient and simple to use;
2. Use famous brand electric and pneumatic components, stable and long life circle;
3. Use superior mechanical components, reduce the wear out loss;
4. When packing, gas is filled into the aluminum plastic bag, and the potato chip production line can effectively prevent the chips from breaking, Charging, packing and coding are completed at one time.

304 Stainless Steel Automatic Fresh Chip Making Machine Production Manufacturers Flow Chart:

FAQ:

Q1: Are you a factory or trading company?
A: We are factory and manufacture.
Q2: Where is your factory located? How can I visit your factory?
A: We are located in Shandong, you can fly to airport. We can pick you up from the airport or your hotel.
Welcome to visit us!
Q3: How to place my order?
A: Just contact us via TraderManager, E-mail, Skype or telephone to confirm the product, make the deposit then we will start to manufacture.
Q4: What is the payment term?
A: 30% T/T deposit and 70% T/T balance payment before shipping.
Q5: How long is the delivery time?
A: About 35- 40 working days.
