Product Details:
|
| Product Name: | Semi Automatic Potato Banana Plantain Crisp Chips Machinery Production Line | Type: | Semi Automatic Production Line |
|---|---|---|---|
| Advantages: | No Middlemen Price Difference | Output Product Name: | Potato Banana Plantain Crisp Chips |
| Material: | 304 Stainless Steel | Power Source: | Electric |
| Capacity: | 500-2000kg/h | Weight: | 1000kg |
| Voltage: | 220/380v | Power: | 380kw |
| Package: | Wooden Package | ||
| Highlight: | Plantain banana and potato chips making machine,banana and potato chips making machine Semi Automatic,Potato plantain chips making machine |
||

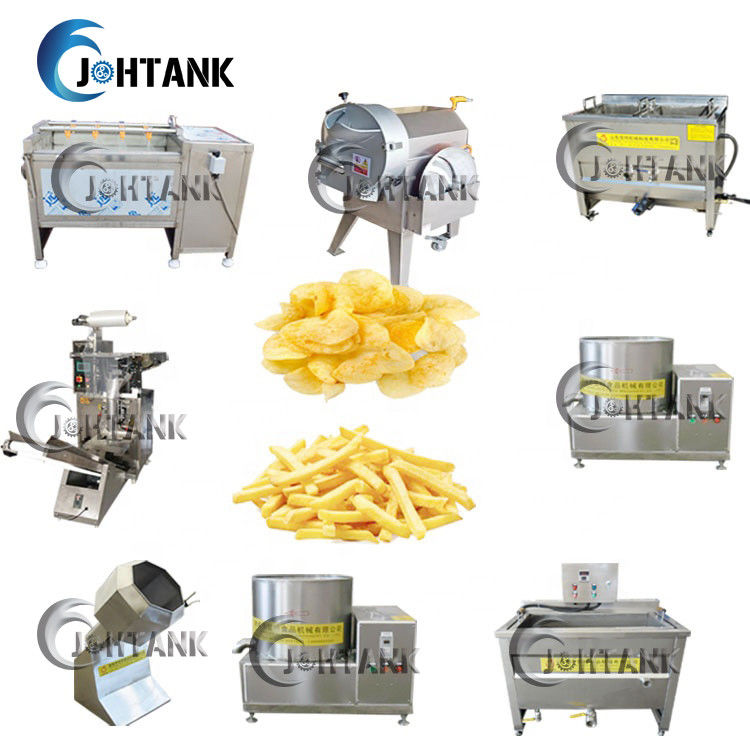

Semi Automatic Potato Banana Plantain Crisp Chips Machinery Production Line
Semi Automatic Potato Banana Plantain Crisp Chips Machinery Production Line Introduction:

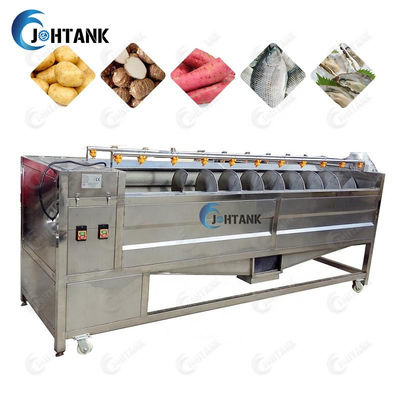

Cleaning&peeling machine: First connect the machine to the power, open water pipes, and then Add potatoes to the hopper, about 3-5 minutes later, move the baffle at the expect mouth.The potatoes were cleaned and peeled.
Slicing machine: The slicing machine is mainly used for cutting plantain and bananas.This machine is also made of 304 stainless steel, and the slice thickness is adjustable, the slice are smooth and no damage.Put the banana in from the top, and the banana slices come out from the bottom.
Blanching machine: Shaped chips need to be rinsed or blanched; you can take the process in accordance with the choice of your requirement . The machine can quickly kill green,inhibit enzyme, protect color, dehydrate and cool in time, so as to keep the original natural color of fruits and vegetables.
De-waterer machine: Put the rinsed chips into the de-waterer for about two minutes then they can be fried.
Frying machine: Heat the oil to 170 degrees Celsius, then put the dehydrated potato chips into the frying machine for about 1.5 minutes, french-fries about 5 minutes
De-oiling machine: Put the fried chips into the De - oiling machine, then the chips will be ok for one minutes.
Flavoring machine: Put the de- oiled chips into the seasoning machine, adding spices according to the tastes of your choice, switch on the power,spices will be evenly attached to the French fries on potato chips.
Packing machine: Generally, these chips should be packed with Nitrogen.
Commercial Industrie Full Automatic Potato Snack Chips Frying Processing Line For Industrie equipment parameters:
| No. | Equipments | Power | Dimensions |
| 1 | washing&peeling machine | 0.75kw/220v/50hz | 690*430*860mm |
| 2 | cutting machine | 0.75kw/220v/50hz | 650*510*700mm |
| 3 | blanching machine | 15kw/380v/50hz | 1310*650*700mm |
| 4 | de-watering machine | 0.75kw/380v/50hz | 940*560*830mm |
| 5 | frying machine | 21kw/380v/50hz | 1380*620*950mm |
| 6 | de-oiling machine | 0.75kw/380v/50hz | 940*560*830mm |
| 7 | seasoning machine | 0.75kw/380v/50hz | 1000*800*1380mm |
| 8 | packing machine | 1kw/380v/50hz | 540*520*920mm |
Commercial Industrie Full Automatic Potato Snack Chips Frying Processing Line For Industrie Live show:
About our services:
If the device fails or encounters difficult problems during use,please first solve it by reading the "Common Troubleshooting Method" in the product description.If the equipment encounters a malfunction and cannot be resolved by itself, please contact us and the company will Respond within 2 hours after receiving the failure notification.
Support Video technical,support Spare parts and Online support service.The core components are guaranteed for 1 year ,support sample service customization service.
We always uphold the "quality of survival, quality of development" business philosophy, the company's machinery, its quality and service have been the consistent praise of customers in different regions, and many customers to achieve friendly cooperation.
