Product Details:
|
| Product Name: | Potato / Banana Chips French Fries Making Fryer Machine | Material: | Stainless Steel Food Grade 304 |
|---|---|---|---|
| Capacity: | 50-1000kg/h | Package: | Wooden Case |
| Warranty: | 3 Years | Function: | Potato / Banana Chips French Fries Making Fryer Machine Production Line |
| Keywords: | PotPotato / Banana Chips French Fries Making Fryer Machine Production Line | Usage: | Potato Banana Chips French Fries |
| Power Source: | Electric And Gas | Advantages: | High Quality Best Price |
| High Light: | 50kg/H Potato Chips Production Line JHTC-4000,banana chips machine,JHTC-4000 fully automatic banana chips making machine |
||

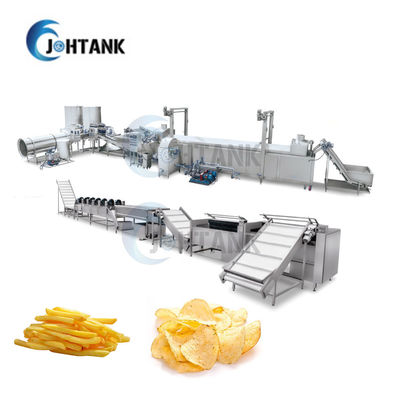

Full Automatic Potato / Banana Chips French Fries Making fryer Machine Production Line
|
No.
|
Machine Name
|
Function
|
|
1
|
PVC Elevator
|
For elevating and conveying fresh potatoes into the next washing peeling machine
|
|
2
|
Potato Washing and Peeling Machine
|
Thoroughly washing and peeling the potatoes
|
|
3
|
Sorting Conveyor
|
For manually disposing the uncleaned places and selecting the defective potatoes
|
|
4
|
Fries Cutting Machine
|
Cutting the potatoes into fries, sizes adjustable from 7*7 to 12*12mm
|
|
5
|
Water Tank Elevator
|
water as buffer to prevent fries breakage, and simply removing starch, meanwhile elevating fries into next step
|
|
6
|
Fries Sorting Machine
|
Automatically picking up the small pieces fries
|
|
7
|
Bubble Washing Machine
|
Through high pressure waterflow and water bubbles to impact and scrub the fries to wash off the starch
|
|
8
|
Blanching Machine
|
Through 60-95 degree hot water blanching to inhibit the activity of the enzyme and maintains the original vivid color of the fries
|
|
9
|
Vibration Dewatering Machine
|
Through vibration to remove the surface water and also to transport the fries uniformly to the next machine
|
|
10
|
Air Drying Machine
|
Through high pressure wind blowing for pre-cooling and removing the excess water in short time, effectively prevent the fried oil jumped phenomenon
|
|
11
|
Elevating Conveyor
|
For elevating and conveying the fries into next fryer machine
|
|
12
|
Continuous Frying Machine
|
For quick frying the fries around 40 seconds in 180°oil to avoid the adhesion and extend the shelf life
|
|
13
|
Vibration Deoiling Machine
|
Through vibration to achieve deoiling purpose, and also to convey the fries uniformly to next machine
|
|
14
|
Pre-cooling Machine
|
Through high pressure wind blowing for pre-cooling and deoiling the fries
|
|
15
|
Freezing Machine
|
Through mechanical vibration and wind pressure, the fluidized quick freezer floats products on stainless steel mesh belt, frozen products and prevent adhesion, achieve IQF
|
|
16
|
Automatic Packing Machine
|
For packing the finished frozen french fries
|
Potato Chips Production Line
Full Automatic Potato / Banana Chips French Fries Making fryer Machine Production Line
Full Automatic Potato / Banana Chips French Fries Making fryer Machine Production Line
