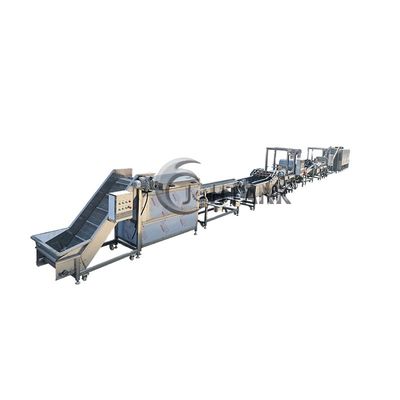

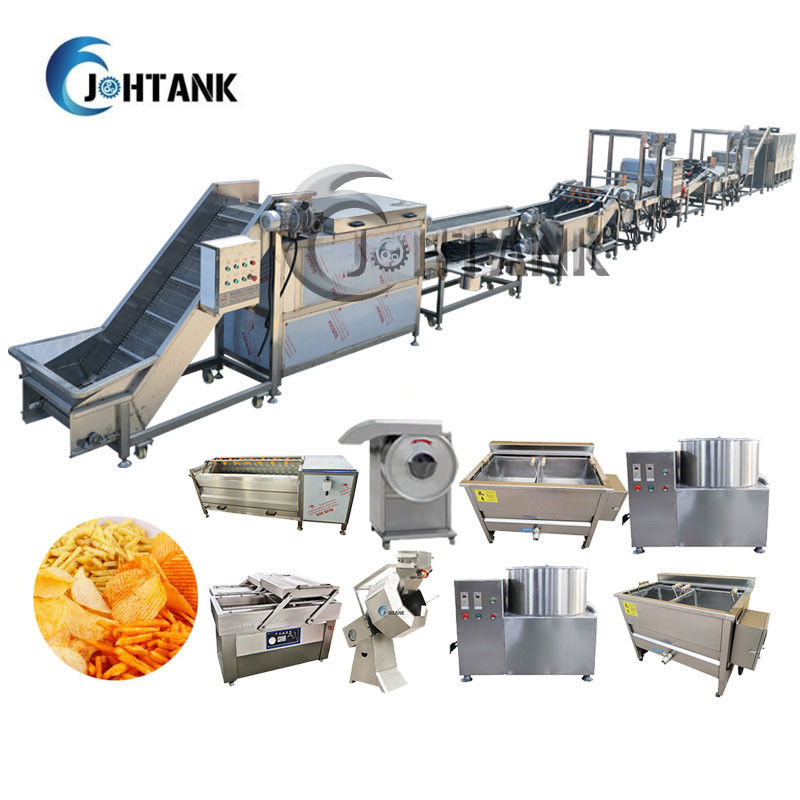

Plantain Banana Potato Chips Production Machine

Automatic Plantain Banana Crispy Chip Potato Frozen Fried Production Line

JOHTANK (SHANDONG) FOOD MACHINERY CO.,LTD is located in zhucheng, SHANDONG province, which is also known as the land of dinosaurs.The company has 13000 square meters of factory buildings and 70 employees.Our company's main products include Frying machine,photochips and frozen french fries processing equipment,fruit & vegetable washing machine,large-scale hot air drying machine and packaging machine.With 10 years of export experience, our products are exported to America, Europe, Africa, Southeast Asia and other countries and regions.With excellent technology, sophisticated processing and testing equipment, reliable manufacturing quality, strict quality assurance system and more perfect after-sales service, has won more and more customers.

Automatic Plantain Banana Crispy Chip Potato Frozen Fried Production Line Productive Process ​:

1.Conveyor hoist machine → 2.Cleaning and peeling machine → 3.Picking machine → 4.Cutting machine → 5.Water bucket elevator → 6.Washing machine → 7.Blanching machine → 8.Vibrating machine to de-water → 9.Electric dryer → 10.Continuous frying machine → 11.Vibrating de-oil machine → 12.Electric dryer
⇓
•Potato CHIPS → 13.Seasoning machine → 14.Packing machine
•FRENCH FRIES → 13.Fluidized belt → 14.Packing machine

Washing flow machine:

1. Washing time is 30-60s;

2. Washing process is for washing off the potato starch on the potato chips which can keep it from fall in the oil and keep long-use life for the frying machine;

Electric dryer:
1. With big air volume centrifugal turbofan, and small sharp air outlet, enable quick drying;
2. With SUS 304 mesh belt, mesh belt width could be 500-1000mm;
3. Mesh speed adjustable by gearbox;
4. With turnover type or flat type mesh belt, suitable for different products drying;
5. Each unit of blowing fan can be controlled separately;
6. Suitable for production line, continuously working;

Continuous frying machine:
1. Optional heating method: electricity, gas, steam, electromagnetism, etc;

2. Frying time can be set, automatic temperature control 0-300°C;
3. Double mesh belt and the conveyor speed is adjustable;
4. Can be equipped with oil filter machine and oil tank;
5. Equipped with mesh lifting system, easy to clean,fire-extinguishing device is optional;
6. With oil storage tank and oil pump;

Vibrating de-oil machine
1. lt is used to remove some oil by vibrating;
2. It is equipped with oil collection board and oil collection box;
3. Overcome the potato chip oil rate is high, greasy mouth defects. It enhances the flavor of the chips;
4. Put the fried chips into the De - oiling machine, then the chips will be ok for one minutes.

Packing machine:
1. Full-automatic Weigh-Form-Fill-Seal type, efficient and simple to use;
2. Use famous brand electric and pneumatic components, stable and long life circle;
3. Use superior mechanical components, reduce the wear out loss;
4. When packing, gas is filled into the aluminum plastic bag, and the potato chip production line can effectively prevent the chips from breaking, Charging, packing and coding are completed at one time.

Automatic Plantain Banana Crispy Chip Potato Frozen Fried Production Line​ Equipment Parameters:

Automatic Plantain Banana Crispy Chip Potato Frozen Fried Production Line​ Package And Transport​:

The company's transport packaging has moisture-proof rust and other good performance. The packing is strong and has the function of preventing extrusion and collision. Each package is marked and weighed in accordance with international standards. If you have special requirements, please contact us for adjustment. The packaging design is reasonable and easy to identify, and can be correctly loaded, unloaded, handled, stored, kept, counted and inspected. Packaging materials are environmentally friendly and energy saving, in line with the concept of environmental protection.
